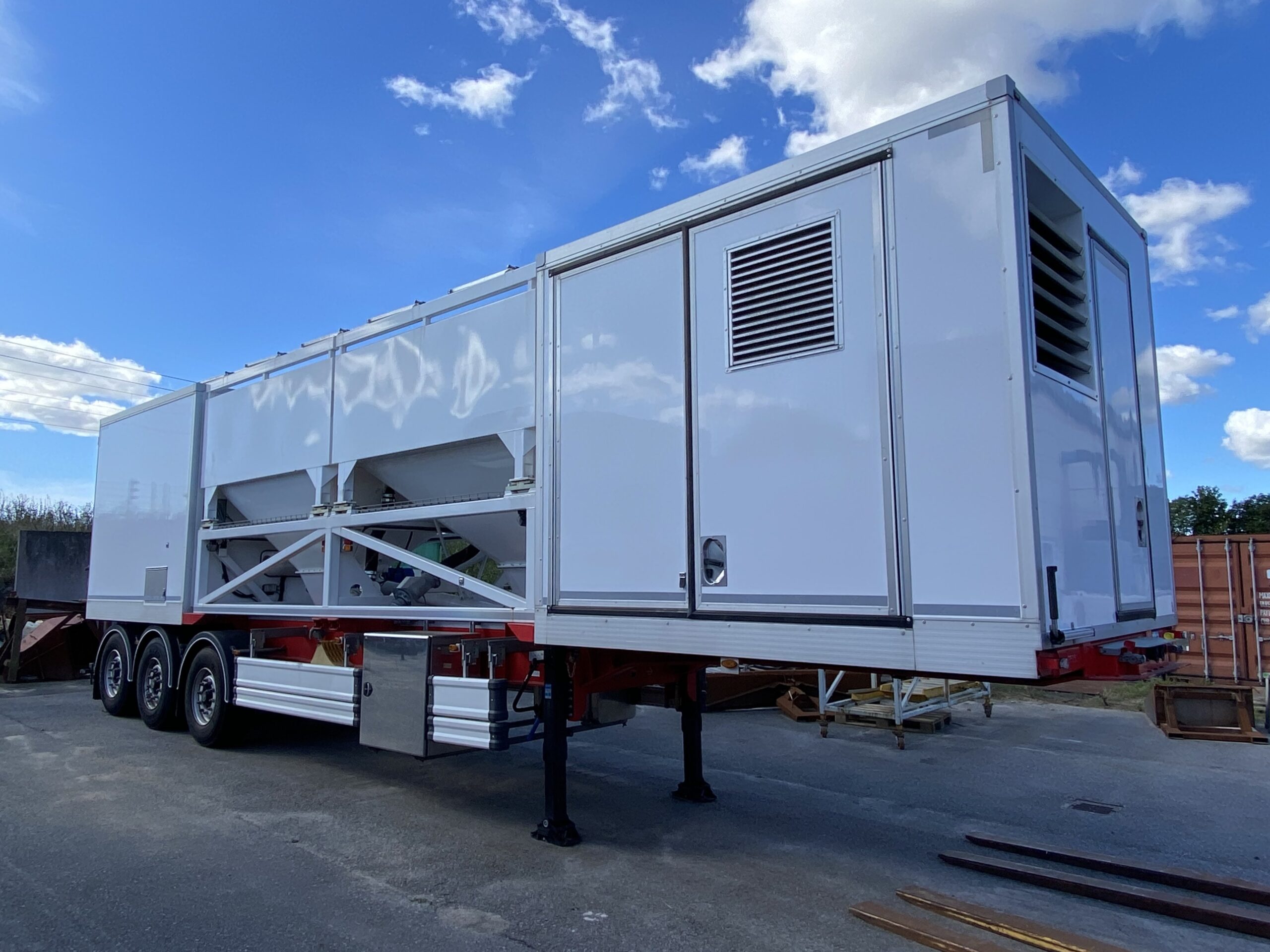

Pumptrailer APT-2247-ORV-G3
Complete facility for self leveling floor screed
Equipment
- Machine area
- Water tank with heater
- Filtration with material recycling
- Power generator
- Compressor
- Hose reel with room for up to 120m pump hose and 100m water line
- Silo area
- Double material silos for two different materials or double capacity of the same material
- Ability to fill material via bulking or on depot through roof hatch
- Weighing equipment with separate weight per silo
- Mixing area
- Mixer KB-150
- Control cabinet with remote controller
- Heating element
- Screed pump
- Capacity free flow: 90-220l/min = 130-340kg/min = 9-20ton/h
Load capacity
Material: 2x8m³ / 2x11000kg
Water: 2,2m³
Fuel: 400L
Dimensions
Length: 12550mm
Width: 2550mm
Height: 3950mm
Rear overhang: 1050mm
Coupling distance: 11070mm
Service weight: 14540kg
Total weight: 45000kg
